Name: Carbide Screw Dies for CNC Punching Machines OEM Custom
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: カット化
Price: 250.00 USD
Availability: InStock

家へ > 製品 > カービッドポンチとダイ >

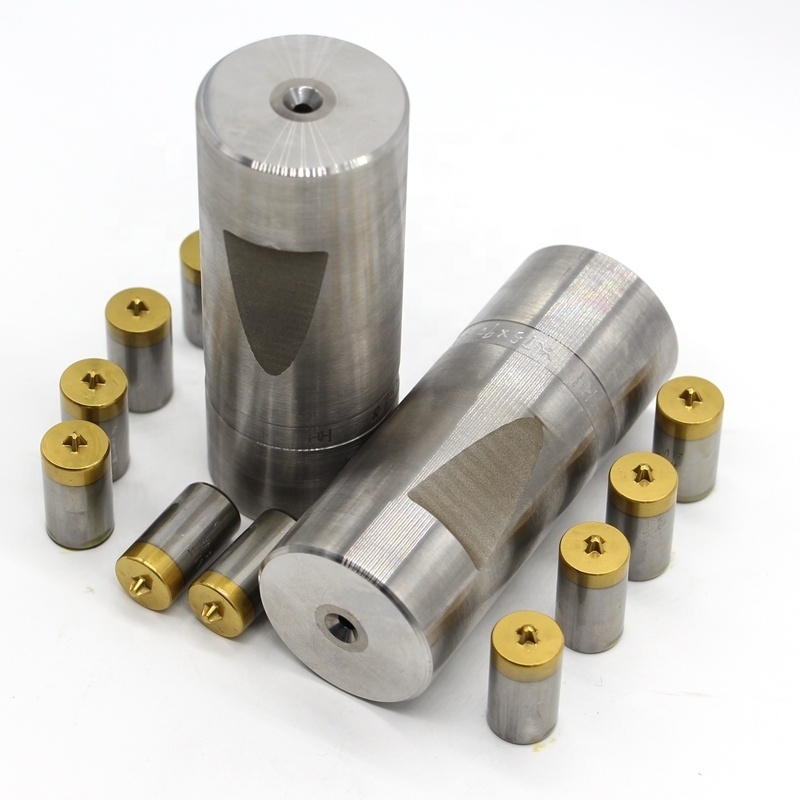

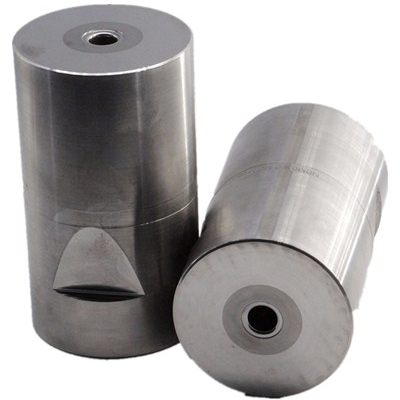

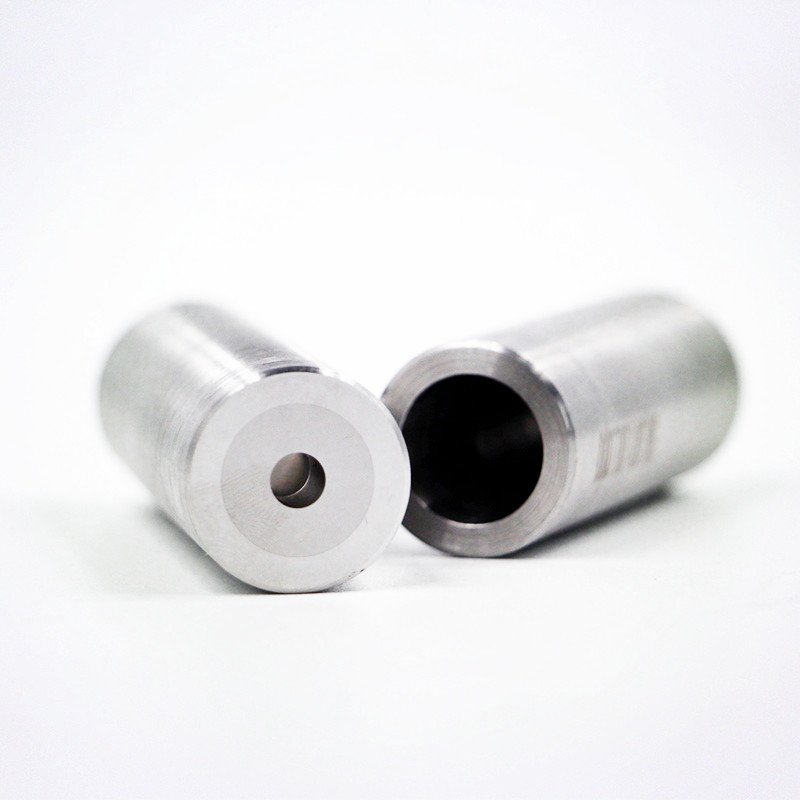

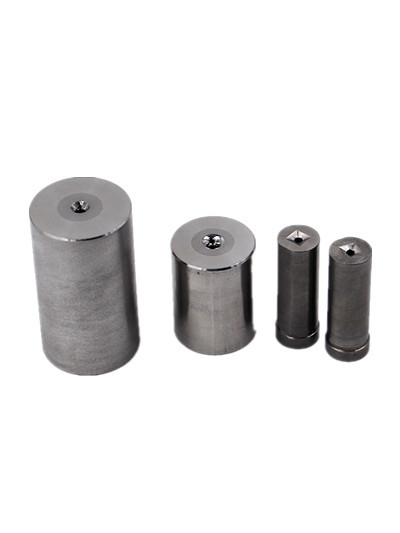

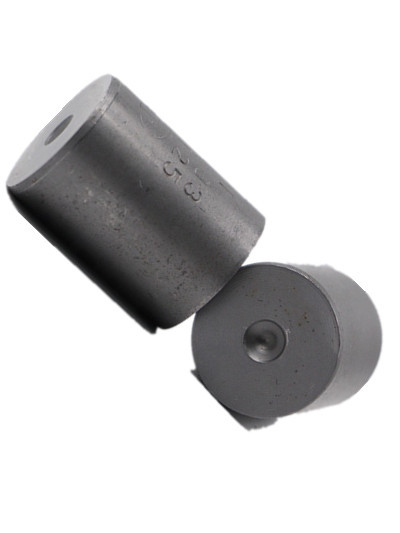

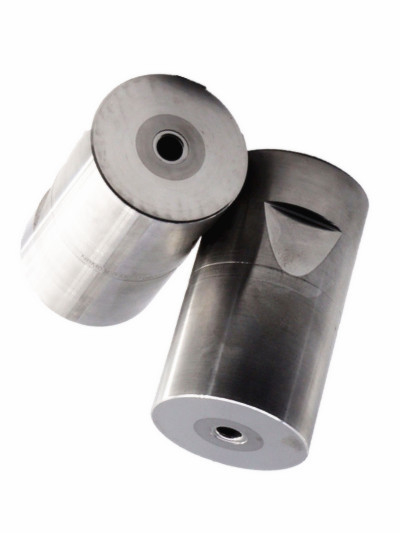

Carbide Screw Dies for CNC Punching Machines OEM Custom

Carbide screw dies for CNC machines

Custom OEM carbide punch dies

CNC punching machine screw dies

起源の場所:

中国のチョンキン

ブランド名:

Henghui

証明:

ISO 9001:2015

モデル番号:

カット化

連絡ください

引金を求めてください

Carbide Screw Dies for CNC Punching Machines OEM Custom

製品詳細

製品材料:

鉄鋼とカービッド

物質的な選択:

VA80、ST7、ST6、KG5

表面処理:

研磨

仕上げる:

磨き完成

プロファイル許容度:

+/- 0.006mm〜 +/- 0.008mm

硬度:

HRA60-68

計器:

VM、プロファイルプロジェクター、圧力計、硬度テスター、拡大ガラス

機械類の処理:

ワイヤーEDM、CNCフライスとターニング、レーザー切断、掘削、研削、曲げ、スタンピング、溶接

図解ソフトウェア:

AutoCAD、Pro-Engineer、UG、Moldflow

相対標準偏差:

0.005mm以内

同心:

0.01mmの中では

化学組成c:

0.85％（M2）、1.06％（M42）

化学組成CR:

4.12％（M2）、3.74％（M42）

化学組成mo:

4.73％（M2）、9.29％（M42）

化学組成v:

1.78％（M2）、1.1％（M42）

支払いと送料の条件

最小注文数量

High Precision Carbide Die for Screw Extrusion Mould

最もよい価格を得なさい

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

最もよい価格を得なさい

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

最もよい価格を得なさい

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

最もよい価格を得なさい

連絡ください

+8613983025528

hou@citool.com

86-023-60338218-60338218

今連絡してください

製品説明

Punch and Die Screw Punches for CNC Turret Punching Machine

Product Specifications

Attribute	Value
Shaping Mode	OEM
Product Material	steel & carbide die
Product	screw die
Product name	carbide main die
Material	carbide and steel
Application	for making screw
Size	Customer's Drawing
Packing	carton
Material choices	VA80, ST7, ST6, KG5
Surface treatment	Polishing
Finish	Polished Finished
Service	OEM ODM

Product Description

Our HSS Punch is manufactured using high-quality high-speed steel materials including SKH9, SKH55, SKH59 (Japan), M2, M35, and M42 (USA). These materials maintain excellent red hardness and wear resistance during high-speed punching operations. We also offer premium powder high-speed steel options (ASP23, ASP30, ASP60) for superior performance applications.

Material Specifications

Material quality hierarchy: Carbide > M42(H59) > M35(H55) > M2(H9)

M2 (H9) Chemical Composition

Element	Content (%)
C	0.85
Si	0.33
Mn	0.34
P	0.027
S	0.005
Cr	4.12
Mo	4.73
V	1.78
W	5.74
Cu	0.12
Ni	0.24

M42 (SKH59) Chemical Composition

Element	Content (%)
C	1.06
Si	0.3
Mn	0.31
P	0.018
S	0.002
Cr	3.74
Mo	9.29
V	1.1
W	1.34
Cu	0.07
Ni	0.29
Co	7.97

Surface Treatment

TILAN coating for enhanced durability and performance

HSS Pin Punch Specifications

Feature	Specification
Material	M2/M42/M35/Carbide
Profile tolerance	±0.006MM ~ ±0.008MM
Surface treatment	Polishing, coating Treatment, Nitriding treatment
Hardness	HRA60-68
Measuring instruments	VMS, profile projector, pressure gauge, hardness tester
Usage	For making bolts or nuts
Design	Standard or custom according to requirements
Processing machinery	Wire EDM, CNC milling and turning, laser cutting, etc.
Drawing software	AUTOCAD, Pro-Engineer, UG, Moldflow
Application	Machinery equipment, heavy industries, medical, chemical
Quality control	100% inspection before shipping
Customization	OEM ODM service available

Manufacturing Facility

About Chongqing Henghui Precision Mold Co., Ltd.

We operate advanced CNC equipment including lathes, machining centers, cylindrical grinding machines, and EDM machines. Our quality assurance includes Rockwell Hardness Testers, Projectors, and 3D Image Measuring Instruments. Using premium tungsten carbide materials and professional vacuum heat treatment, we manufacture precision molds for cold heading and hot upsetting industries with dimensional accuracy within 0.005mm and concentricity within 0.01mm.

Certified under ISO9001:2015 quality management system, we serve clients globally including Southeast Asia, Europe, and the United States. Our commitment to "Customer first, quality first, technology first, dedicated service" ensures exceptional products and service.

Exhibition Participation

We actively participate in international fastener exhibitions including German Fastener Exhibition and Indian Fastener Exhibition, where we showcase our latest products and connect with industry professionals.

Packaging and Delivery

Packaging: Carton Box; Export Standard Package or customized as per client requirements.
Delivery: 12-45 days depending on order quantity.

Quality Inspection Equipment

Frequently Asked Questions

Q1: How can I get a quotation from your company?

A1: Please provide drawings, material specifications, quantity requirements, and surface treatment preferences for accurate pricing.

Q2: What is your lead time?

A2: Production time varies based on order quantity and destination country, typically ranging from 12-45 days.
