High Precision Carbide Die for Screw Extrusion Mould

high precision carbide die

screw extrusion mould die

carbide die for extrusion

起源の場所:

中国のチョンキン

ブランド名:

Henghui

モデル番号:

カスタマイズ

連絡ください

引金を求めてください

High Precision Carbide Die for Screw Extrusion Mould

製品詳細

シェーピングモード:

エクストルーション模具

製品材料:

鋼鉄

表面処理:

研磨

ケースマテリアル:

H13（SKD61）HRC46-48

Coの内容:

6.50％-24％

穀物サイズ:

2〜3μm -6〜9μm

密度:

13.22-14.90 g/cm²

硬度:

82.5-90.5 hra

TRS:

240-340 kgf/mm²

衝撃強度:

0.28-0.90 kgf/m -cm²

Cの内容:

0.39%

Cr コンテンツ:

5.12％

Mo含有量:

1.3%

Vコンテンツ:

0.94％

相対偏差:

0.005mm

支払いと送料の条件

最小注文数量

High Precision Carbide Die for Screw Extrusion Mould

最もよい価格を得なさい

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

最もよい価格を得なさい

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

最もよい価格を得なさい

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

最もよい価格を得なさい

連絡ください

+8613983025528

hou@citool.com

86-023-60338218-60338218

今連絡してください

製品説明

High Precision Polishing Forging Mould Shaping Mode Nut Fastener Forming Dies

Product Specifications

Shaping Mode	Extrusion Mould
Product Material	Steel
Product	Vehicle Mould
Surface Treatment	Polishing
Application	Screws Making
Size	Customer Size Accepted
Delivery Time	15-20 Days
Packing	Carton Case
Service	OEM ODM Customized

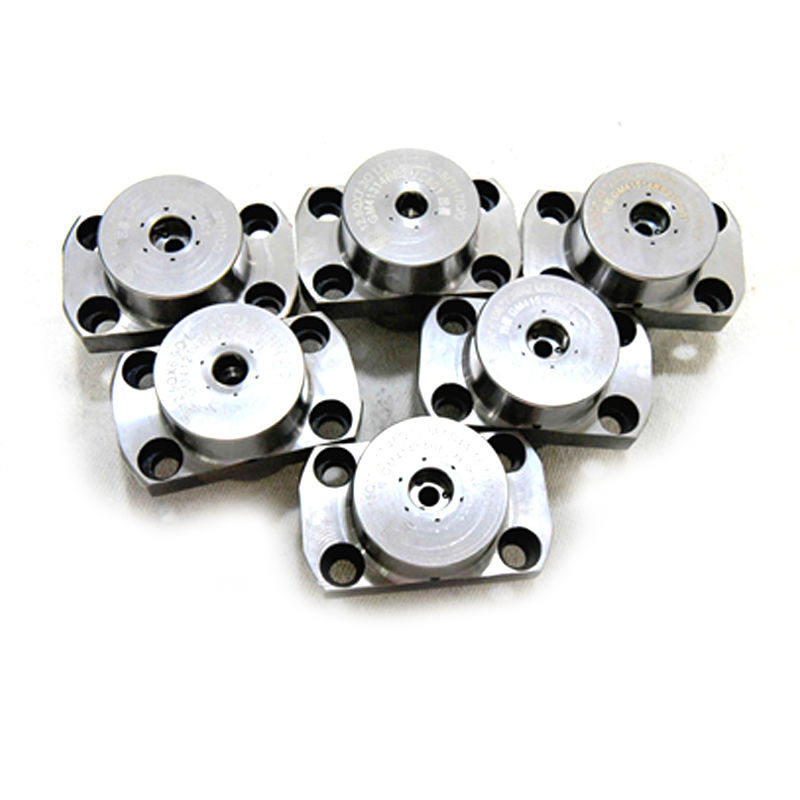

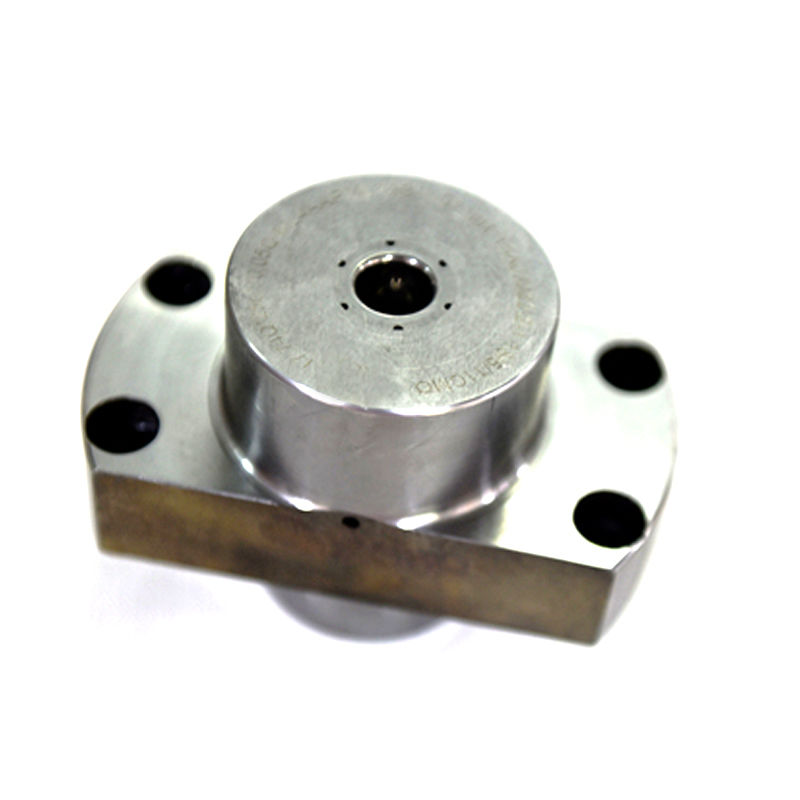

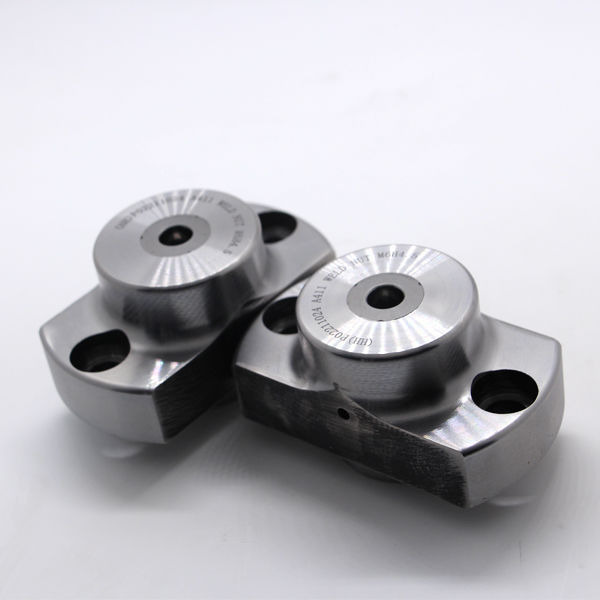

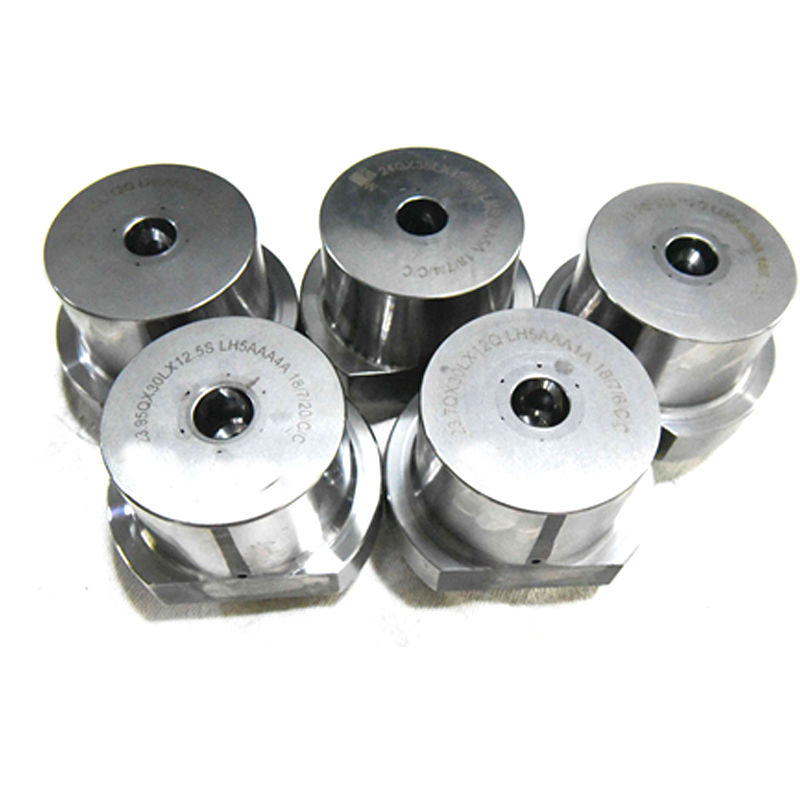

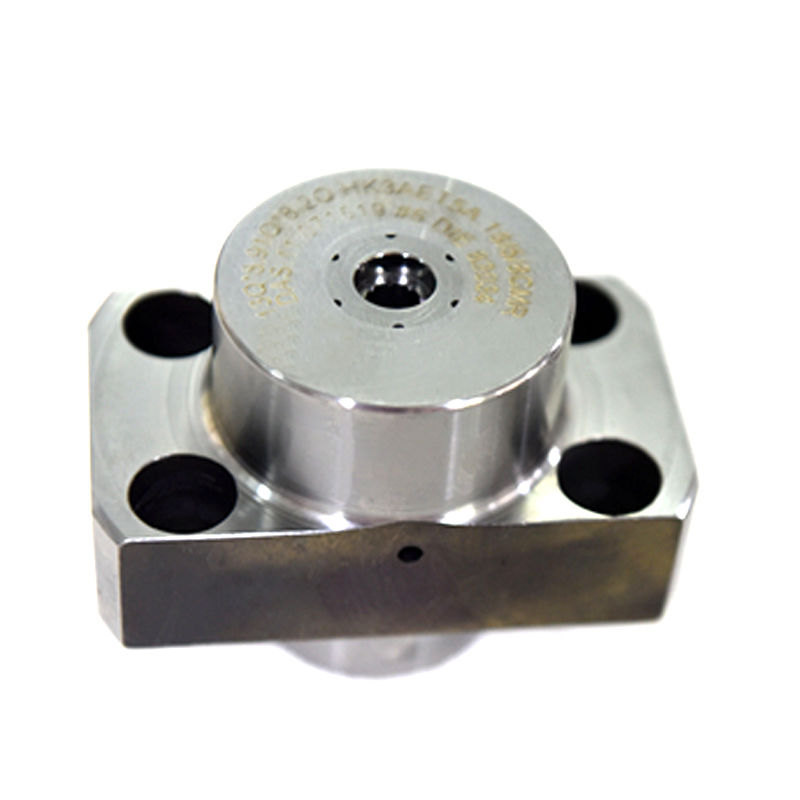

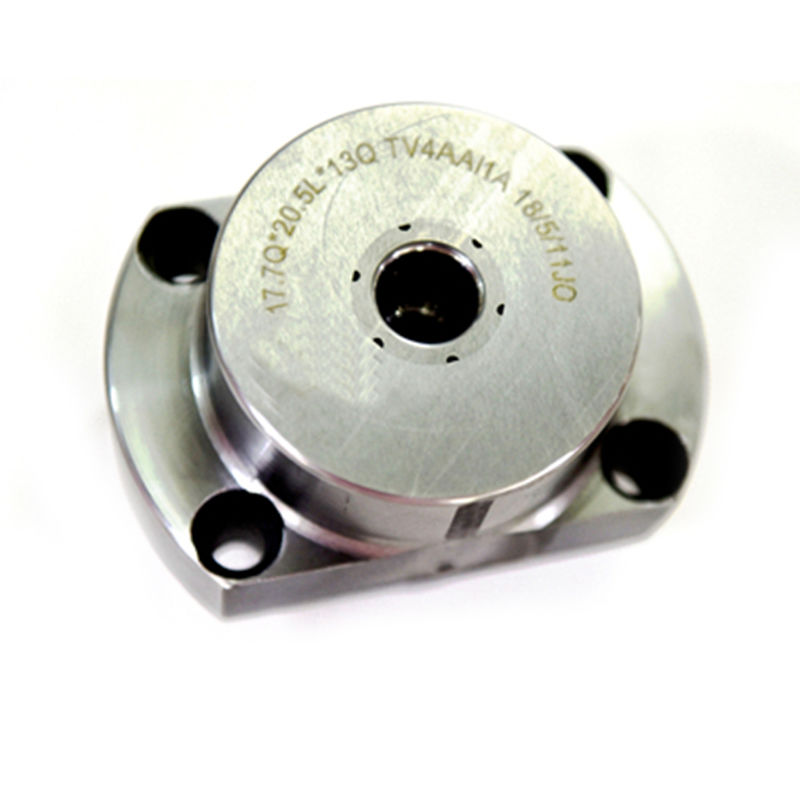

Product Images

Insert Material Options

We provide various carbide materials tailored for different applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
KG2	6.50%	2~3 μm	14.90 g/cm²	90.5 HRA	320 Kgf/mm²	0.28 Kgf/m-cm²	Drawing die
KG3	9%	2~3 μm	14.61 g/cm²	89.3 HRA	340 Kgf/mm²	0.52 Kgf/m-cm²	Extrusion die
KG5	12%	2~3 μm	14.31 g/cm²	88.3 HRA	340 Kgf/mm²	0.58 Kgf/m-cm²	Extrusion die
KG6	14%	2~3 μm	14.12 g/cm²	87.3 HRA	320 Kgf/mm²	0.65 Kgf/m-cm²	Extrusion die

Case Material

Primary case material: H13(SKD61) HRC46-48

Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94

Surface Treatment

Available treatments: TiN / TiAlN

Manufacturing Facility

About Our Company

Chongqing Henghui Precision Mold Co., Ltd. specializes in high-precision mold manufacturing with advanced CNC equipment including lathes, machining centers, and grinding machines. Our facility features comprehensive testing equipment like Rockwell Hardness Testers and 3D Measuring Instruments.

We utilize premium tungsten carbide materials and professional vacuum heat treatment to produce molds with exceptional precision (standard deviation ≤0.005mm, concentricity ≤0.01mm). Certified under ISO9001:2015, we serve global clients across Southeast Asia, Europe, and the United States with our commitment to quality, technology, and customer service.

Packaging & Delivery

Standard packaging: Carton Box (Export Standard) or customized per client requirements

Delivery time: 12-45 days depending on order quantity

Frequently Asked Questions

Q: How can I get a quotation?

A: Please provide product drawings, material specifications, quantity requirements, and desired surface treatment for prompt quotation.

Q: What is your production lead time?

A: Lead time varies based on order quantity and destination country. Typical delivery ranges from 15-45 days.
